Description

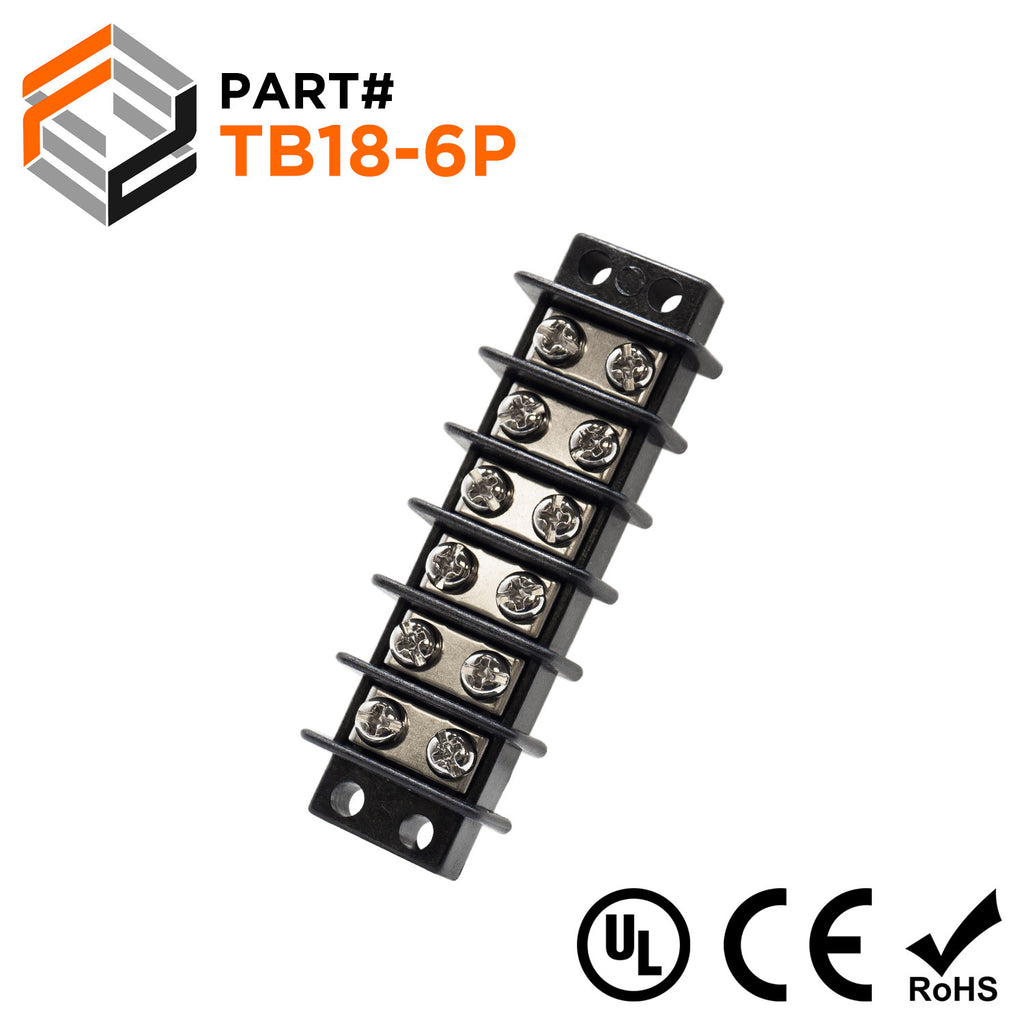

tbg plattformpedale sc-b686 Barrier Strip Terminal Block, Terminal Strip, 6 Pole, Double Row, 20A, 300V, UL ApprovedTerminal strips are used to fasten or terminate wire. This can be done by placing bare exposed wire under the screws poles and screwing them down. However, use of a wire ferrule or fork spade terminal is encouraged to prevent the wire from fraying. Dimensions & Features: Number of Poles: 6 Poles Pitch: 11. 1mm (0. 44") A: 77. 7mm (3. 06") B: 85. 9mm (3. 38") Material: Thermoplastic UL94 V0 Electrical Rating: 300 Volts Amp Rating: 20AMP UL Recognized:
Terminal strips are used to fasten or terminate wire. This can be done by placing bare/exposed wire under the screws/poles and screwing them down. However, use of a wire ferrule or fork/spade terminal is encouraged to prevent the wire from fraying.Dimensions & Features:
| Number of Poles: | 6 Poles |
| Pitch: | 11.1mm (0.44") |
| A: | 77.7mm (3.06") |
| B: | 85.9mm (3.38") |
| Material: | Thermoplastic UL94-V0 |
| Electrical Rating: | 300 Volts |
| Amp Rating: | 20AMP |
| UL Recognized: | Yes |
| CE Certified: | Yes |
| RoHS Compliant: | Yes |
Product Drawing:
Cross References
Cross Reference Parts:None
Documents
Click to view product spec sheet:Videos
